CSS Grid - auto-fill vs auto-fit

By Hemanta Sundaray on 2021-11-12

auto-fill

index.html
<div class="container">
    <div class="box box-1">Box 1</div>
    <div class="box box-2">Box 2</div>
    <div class="box box-3">Box 3</div>
    <div class="box box-4">Box 4</div>
    <div class="box box-5">Box 5</div>
    <div class="box box-6">Box 6</div>
</div>
style.css
.container {
  width: 80%;
  background-color: #ddd;
  margin: 40rem auto;
  display: grid;
  grid-template-columns: repeat(auto-fill, minmax(10rem, 1fr));
}

.box {
  padding: 2rem;
  font-size: 2rem;
  color: #fff;
}

.box-1 {
  background-color: orangered;
}

.box-2 {
  background-color: olivedrab;
}

.box-3 {
  background-color: royalblue;
}

.box-4 {
  background-color: blueviolet;
}

.box-5 {
  background-color: gold;
}

.box-6 {
  background-color: gray;
}

Line 6: The grid will create as many 10rem column tracks as will fit in the container.

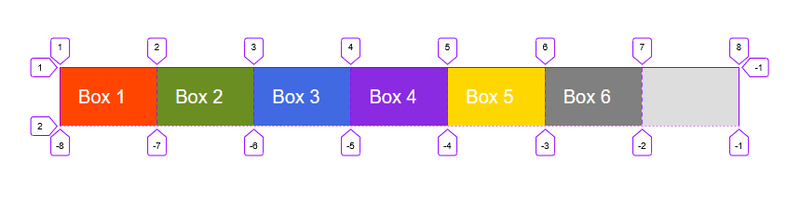

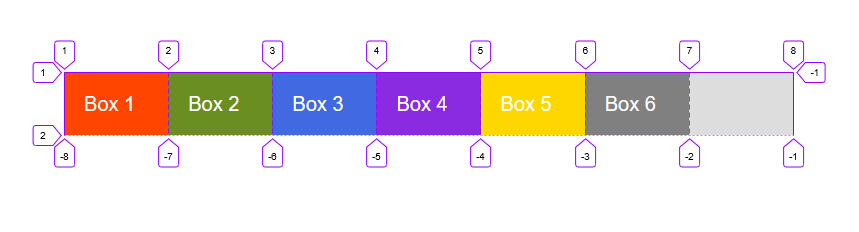

auto-fill

auto-fit

auto-fit behaves the same as auto-fill, except that after placing the grid items any empty repeated tracks are collapsed.

A collapsed track is treated as having a single fixed track sizing function of 0px, and the gutters on either side of it collapse.

style.css
.container {
  width: 80%;
  background-color: #ddd;
  margin: 40rem auto;
  display: grid;
  grid-template-columns: repeat(auto-fit, minmax(10rem, 1fr));
}

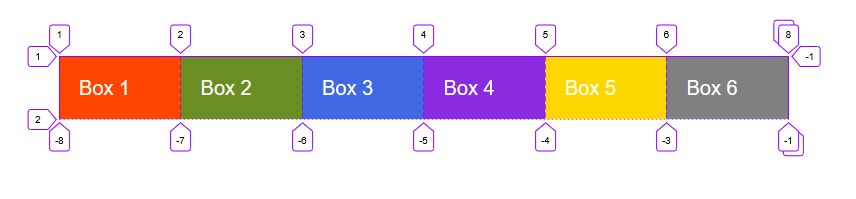

auto-fit
